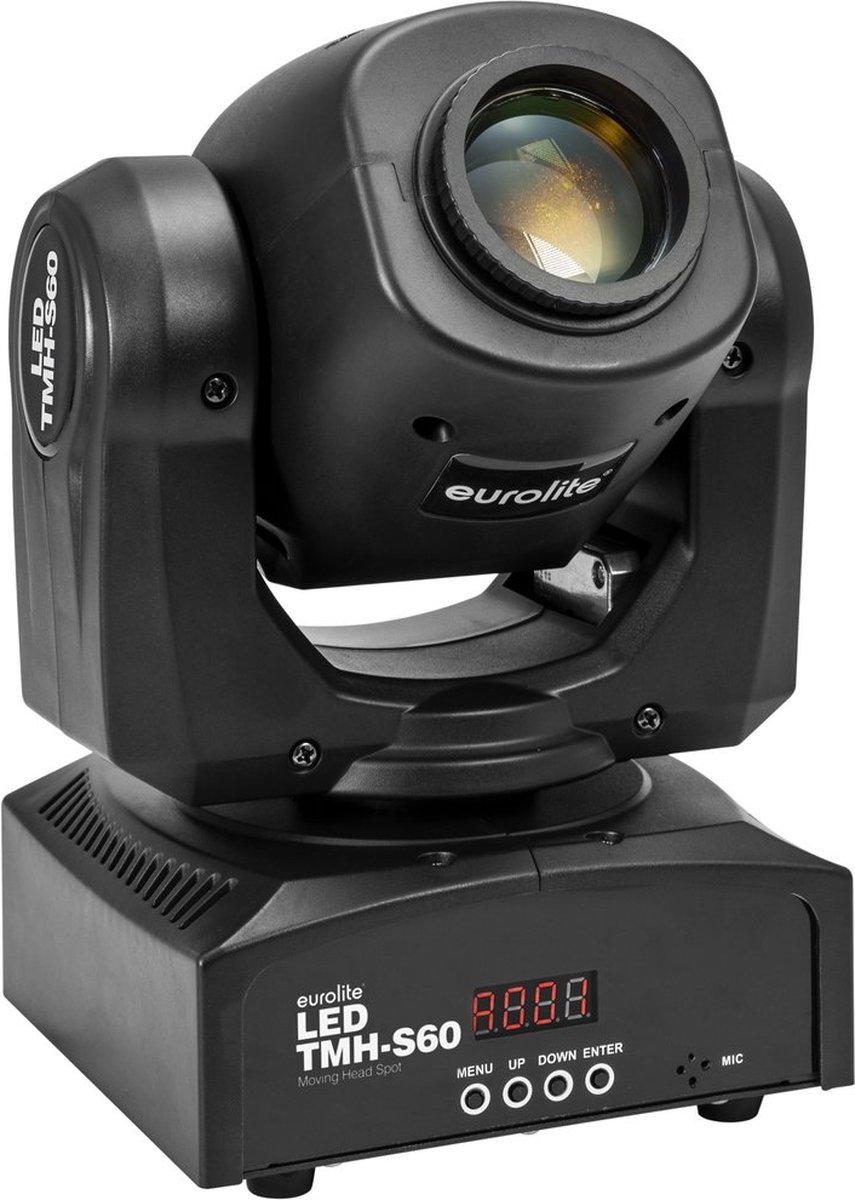

EUROLITE LED TMH-S60 Moving-Head Spot mit 60-Watt-LED

Lots of features in a compact housing

The TMH series from Eurolite includes a variety of different moving heads, which convince in different weight classes by their compactness and their good price-performance ratio.

TMH-S60: SPOTLIGHT WITH EXCHANGEABLE GOBOS The TMH-S60 is a particularly compact yet powerful spotlight. Despite its compact dimensions, it is not only equipped with a bright 60-watt LED, but also with a rotating gobo wheel and a color wheel. The gobos can be changed very easily by a slot-in system. Additionally available are sets of 3 alternative gobos each, with romantic heart and spooky Halloween motifs. The device is available in black and white housing and is therefore especially popular for wedding parties. WIRELESS CONTROL Thanks to the built-in USB socket, a QuickDMX receiver can be plugged in, enabling control via wireless DMX. FEATURES

Compact Moving Head Spot with 60 W LED, gobos and color wheel

• 3 gobos with heart patterns for exchange included
• 1 powerful LED 60 W COB (chip-on-board) cold white (CW)
• Positioning within 540° PAN and 180° TILT
• Gobo wheel with rotating gobos; Focus manual; color wheel
• Beam effect; Strobe effect
• Color wheel with 7 dichroic filters plus openhalf colors selectable, Rainbow effect with adjustable speed in both directions
• Gobo wheel with rotating gobos, 7 gobos and openSlot-in gobo system for easy gobo replacement
• Shake effect
• 4 integrated show programs
• The device is cooled by cooling fan
• Control via stand-alone; DMX; Sound to light via Microphone; Master/slave function; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional); Light´J app
• Flicker-free
• With a beam angle of 12°
• 4 digit 7-segment LED display
• Dimmer electronic
• Preprogrammed in LED PC-Control 512; EASY SHOW 1; Light Captain
• Rubber feet

Package contents

• 1 x moving light, 1 x user manual, 1 x power cord, 1 x omega bracket, 1 x safety eyelet, 3 x gobos

TECHNICAL SPECIFICATIONS Power supply: 100-240 V AC, 50/60 Hz Power consumption: 95 W IP classification: IP20 Protection class: Protection class I Power connection: Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) Device fuse: 5 x 20 mm, T 1,5 A Fuse replaceable Lamp type: LED lamp LED: 1 x 60 W COB (chip-on-board) cold white (CW) Color temperature: 7700K Max. TILT movement: 180° Positioning Max. PAN movement: 540° Positioning Equipment: Gobo wheel with rotating gobos; Focus manual; color wheel Color generation: Color wheel with 7 dichroic filters plus open Half colors selectable, Rainbow effect with adjustable speed in both directions Gobos: Gobo wheel with rotating gobos, 7 gobos and open Outside diameter 13,8mm Image diameter 11mm Slot-in gobo system for easy gobo replacement Shake effect DMX channels: 10; 12 DMX input: 3-pin XLR (M) mounting version DMX output: 3-pin XLR (F) mounting version Cooling: Cooling fan Control: Stand-alone; DMX; Sound to light via Microphone; Master/slave function; CRMX by LumenRadio via USB (optional); W-DMX by wireless solution via USB (optional); QuickDMX via USB (optional); Light´J app Preprogrammed in: LED PC-Control 512; EASY SHOW 1; Light Captain Beam angle: 12° Beam angle (1/2 peak): 12° Illuminance in Lux (lx): Cold white (CW) 1m: 15205 lx, 3m: 1764 lx, 6m: 445 lx Housing color: Black Display type: 4 digit 7-segment LED display Transport aid: Rubber feet Dimensions: Width: 17,0 cm Depth: 15,0 cm Height: 24,0 cm Weight: 3,15 kg Legal specifications Special product: Not designed for household room illumination Intended use: Show effect lighting
